Aircraft Structures Aluminium Square Pipe 6061 T6 Aluminium Square Hollow

Chongqing Huanyu Aluminum Material Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Aircraft Structures Aluminium Square Pipe 6061 T6 Aluminium Square Hollow

  • 1
  • 2

Brand Name : HUANYU

Model Number : HYATP6061T6

Place of Origin : CHINA

MOQ : 5 metric tons

Price : Negotiable

Payment Terms : T/T

Supply Ability : 120 Metric Tons Per Month

Delivery Time : 40 days

Packaging Details : Plywood Case

Tensile Strength : 45000 psi

Yield Strength Minimum : 40000 psi

Weldability : Excellent

Brinell Hardness : 95

Melting Point : 1220F

Elongation in 2%22 : 17%

Contact Now

Anodizable And Machinable 6061 T6 Aluminum Square Pipe Used As Aircraft Structures

6061 ALUMINUM ALLOY CHARACTERISTICS:
Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good

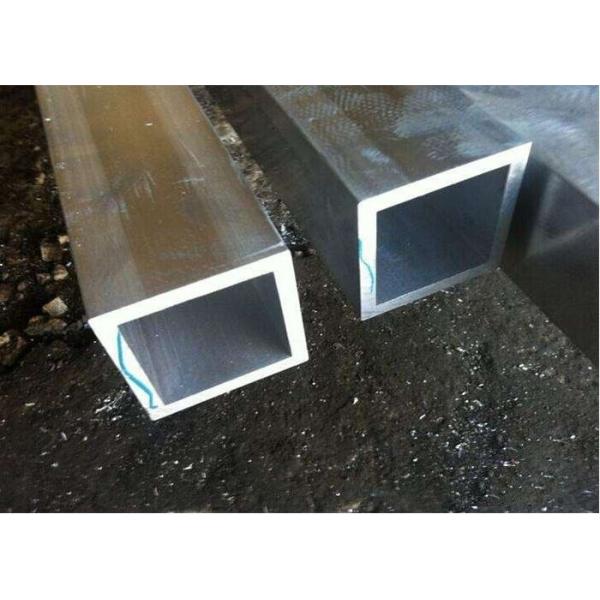

6061 T6 Aluminum Square Tube

Grade 6061 aluminum has good strength and corrosion resistance properties, is easily anodizable and machinable, and is even bendable in some cases.
Due to its versatility, 6061 can be used in structural components, bike frames, machined parts, and boating components.
6061 is also weldable. Overall, grade 6061 aluminum square tube is a structural aluminum alloy that provides many excellent features and outstanding benefits.
6061 Aluminum Square Tube Chemical Composition

Silicon minimum 0.4%, maximum 0.8% by weight
Iron no minimum, maximum 0.7%
Copper minimum 0.15%, maximum 0.4%
Manganese no minimum, maximum 0.15%
Magnesium minimum 0.8%, maximum 1.2%
Chromium minimum 0.04%, maximum 0.35%
Zinc no minimum, maximum 0.25%
Titanium no minimum, maximum 0.15%
Other elements no more than 0.05% each, 0.15% total
Remainder aluminum (95.85–98.56%)
Chemical Composition Limits
Weight% Al Si Fe Cu Mn Mg Cr Zn Ti Other Each Others Total
6061 Bal 0.40 - 0.80 0.70 max 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 max 0.15 max 0.05 max 0.15 max

Aluminum 6061 is an extremely versatile heat treatable aluminum alloy due to its content of silicon and magnesium. 6061 has a wide range of mechanical and corrosion resistance properties as well as having most of the good qualities of aluminum. 6061 is used in a many applications from aircraft structures, yacht construction, truck bodies, bicycle frames to screw machine parts.

Aircraft Structures Aluminium Square Pipe 6061 T6 Aluminium Square Hollow

Aircraft Structures Aluminium Square Pipe 6061 T6 Aluminium Square Hollow
